Microarray Platform

Advanced genotyping technology delivers standardized, reproducible, and high-throughput genetic genotyping across species, supporting research and breeding worldwide.

Scanner

Microarray

Equip&LR

Software

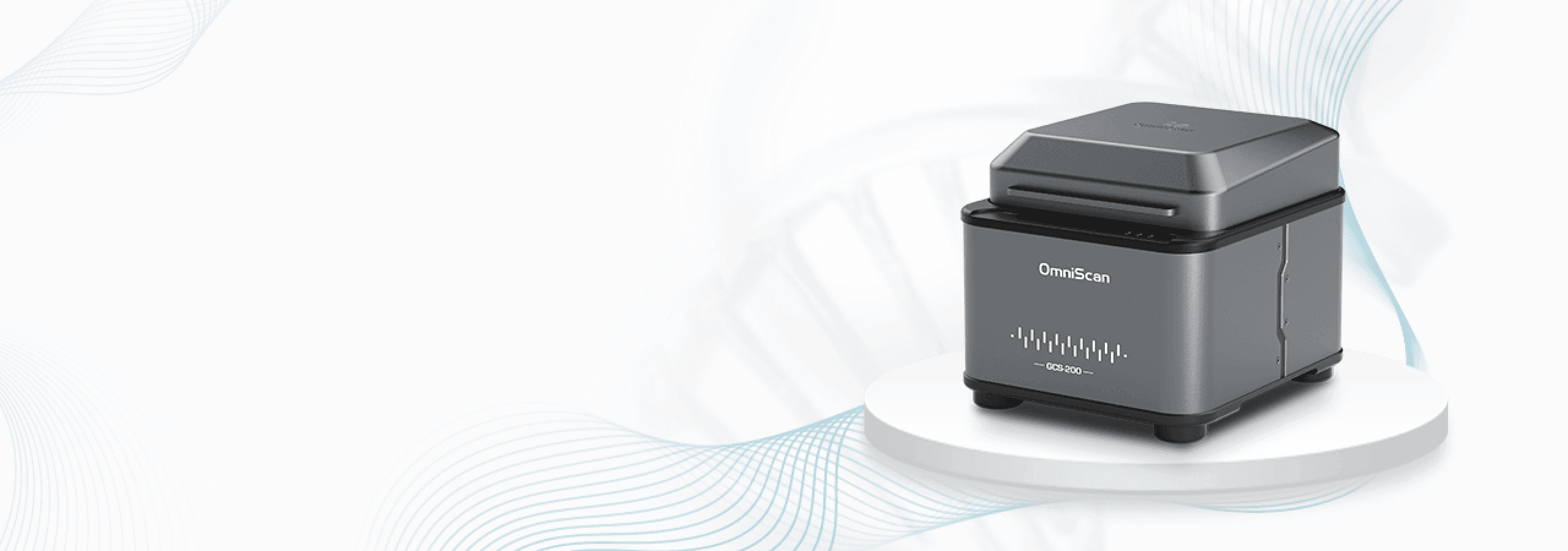

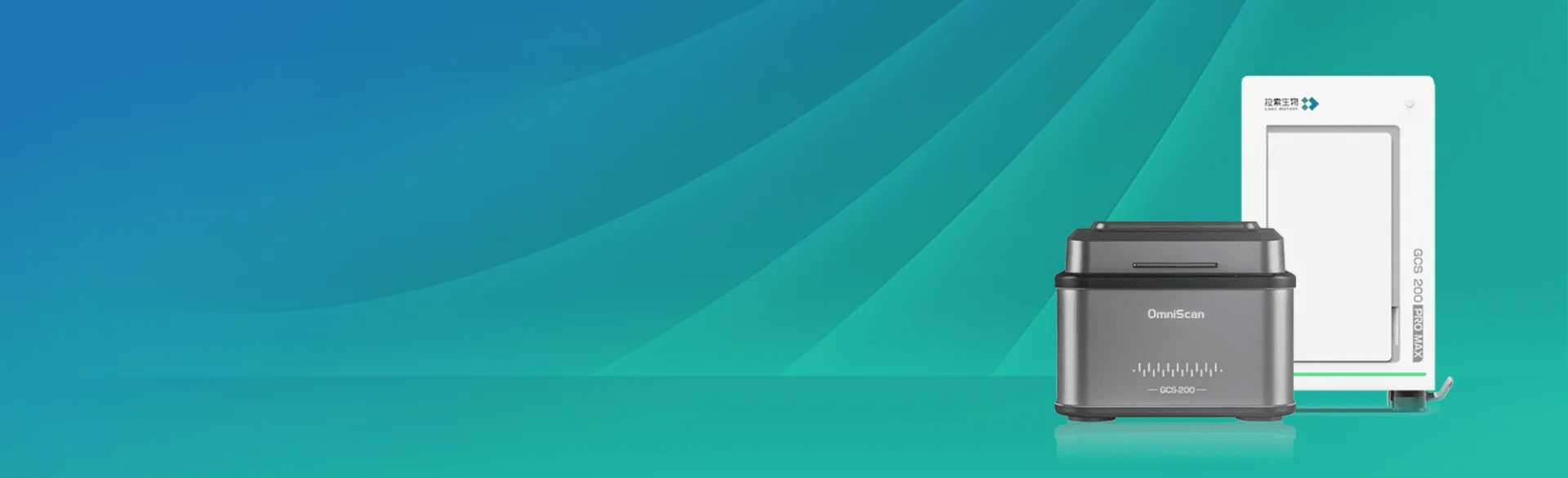

Microarray Scanner

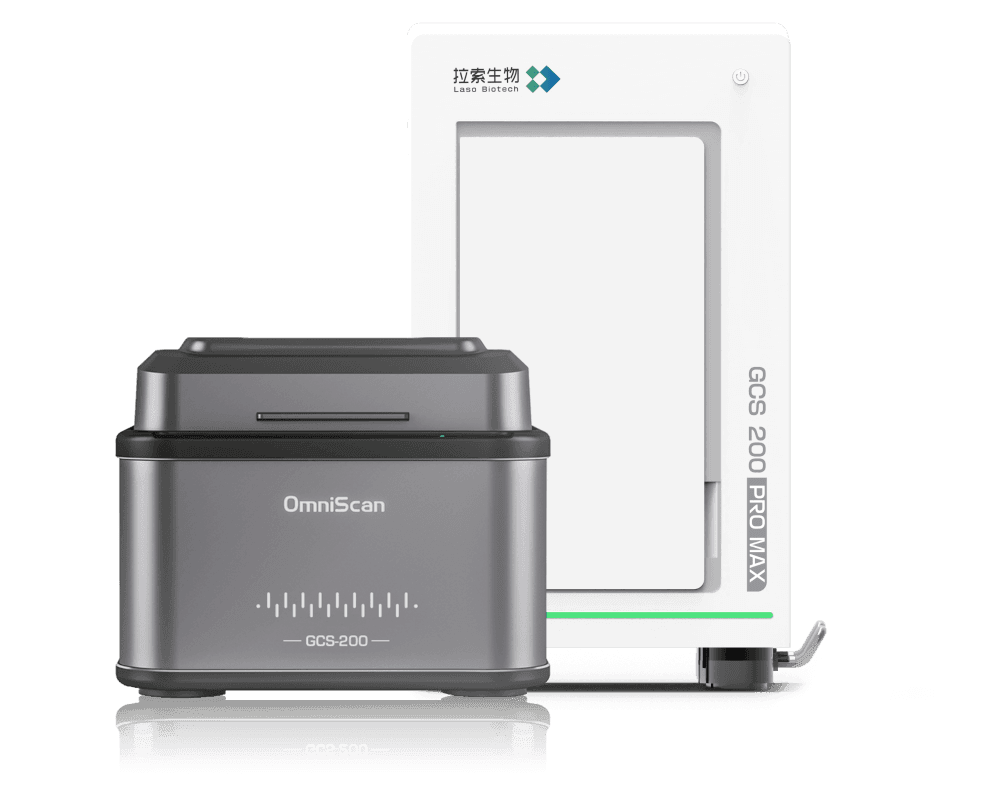

From the compact OmniScan to the automation-ready OmniScan PRO MAX, LASO scanners provide rapid and accurate imaging for every lab scale.

Parameters

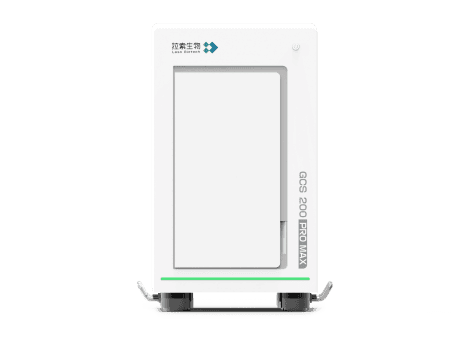

OmniScan PRO MAX

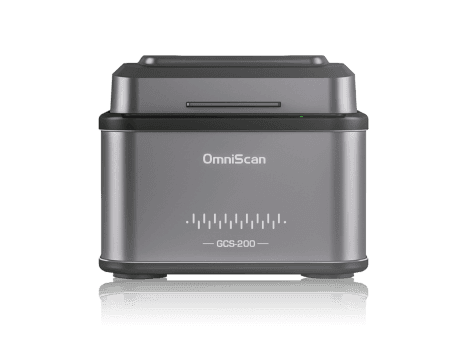

OmniScan
Product Model
GCS 200 PRO MAX
GCS 200
Dimensions (Width * Depth * Height) (mm)
435 × 776 × 633
264 × 295 × 246
Weight
100 kg
13.5 kg
Power Supply
220V 50Hz ；300W
220V 50Hz ；63W
Operating Temperature Range
10℃~30℃
10℃~30℃
Operating Humidity Range
30%~75%
≤80%
Storage Temperature Range
5℃~40℃
-20℃~55℃
Storage Humidity Range
≤80%
≤85%
Power Adapter
24V；8.4A
12V；5A
Full-channel Detection Time per Chip
≤8 min
≤30 min
Motion Accuracy
1 μm
1 μm
Altitude
≤2000 m
≤2000 m
Excitation Channels
2
2
Tests per array
1-24 / 1-96
1-24 / 1-96
